Ｍｉｄｏｒｉ２　詳細（旧）

メインマシン　Ｍｉｄｏｒｉ２　詳細（旧）　過去の分です

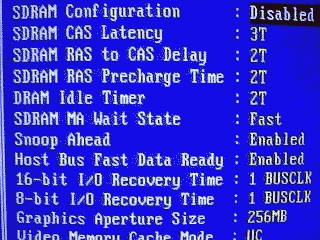

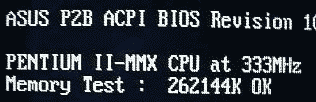

Ｐ２Ｂ　ＢＩＯＳ設定　この設定で333MHz=133*2.5で安定動作
　

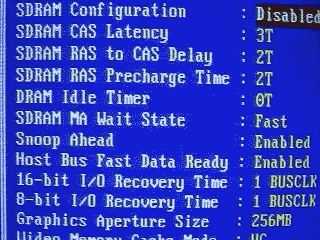

左が256MB時、右が128MB時(Winbond 1枚)の設定
256MB時は SDRAM Idle Timer を 2T に変更しないと安定しない

ＨＤＢｅｎｃｈ　

★ ★ ★	HDBENCH Ver 2.650 ★ ★ ★
使用機種
Processor	Celeron 450.9MHz [GenuineIntel family 6 model 5 step 1]
解像度	1024x768 65536色(16Bit)
Display	Matrox Millennium II AGP
Memory	255,900Kbyte
OS	Windows 98 4.10 (Build: 1998)
Date	1998/ 8/ 4 10:50

SCSI = Initio INI-9XXXU/UW or inic-950 PCI SCSI Controller

HDC[?]=Intel 82371AB/EB PCI Bus Master IDE Controller

HDC[X]=Creative Labs IDE controller

A = GENERIC NEC FLOPPY DISK

C = IBM DDRS-34560W Rev S97B

DE = IBM DCAS-34330W Rev S65A

FG = IBM DORS-32160 Rev WA6A

M = FUJITSU M2513A Rev 1500

Q = PIONEER CD-ROM DR-U10X Rev 1.07

ALL	浮	整	矩	円	Text	Scroll	DD	Read	Write	Memory	Drive
21443	36454	28930	37639	3773	40290	3014	11	10666	10778	23388	C:10MB
20628	36454	28929	37679	3782	40268	3014	11	7424	7473	23391	D:10MB
20151	36453	28928	37704	3803	40202	3012	11	5552	5558	23389	F:10MB

ＦｉｎａｌＲｅａｌｉｔｙ 1.01

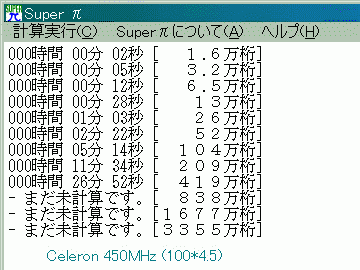

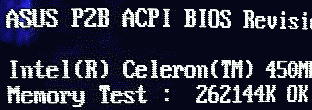

Celeron 450MHz + Voodoo2

Database Entry <Celeron-450(400*4.5)+Mil2(AGP)+3DBlaster2(3Dfx/96)+SBAWE64>

Benchmark results:
Radial blur, 5N, 45.95, rips, 6.355, Rmark
Chaos zoomer, 5N, 70.98, rips, 3.449, Rmark
25 Pixel, 5N, 154.13, kpps, 4.926, Rmark
Robots, 5N, 42.88, rips, 11.109, Rmark
Fillrate, 5N, 53.10, MPps, 11.494, Rmark
City scene, 5N, 57.58, rips, 14.288, Rmark
Video card bus transfer, 5N, 131.84, MBps, 4.197, Rmark
Direct3D bus transfer, 5N, 92.86, MBps, 7.937, Rmark
---------------------------------------------------------------------
Visual appearance, 100.00, percent
---------------------------------------------------------------------
Overall 3D, 3.854, Rmark
Overall 2D, 4.902, Rmark
Overall bus rate, 5.319, Rmark
---------------------------------------------------------------------
OVERALL SCORE, 4.388, Rmark
---------------------------------------------------------------------
4220573100

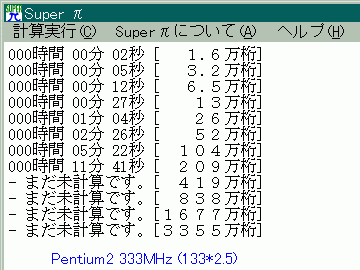

Pentium2 333MHz + Voodoo2

Database Entry <P2-333(133*2.5)+Mil2AGP+3DBlaster2(Cre/96)+SBAWE64>

Benchmark results:
Radial blur, 5N, 40.82, rips, 5.647, Rmark
Chaos zoomer, 5N, 61.49, rips, 2.988, Rmark
25 Pixel, 5N, 332.02, kpps, 10.611, Rmark
Robots, 5N, 45.72, rips, 11.844, Rmark
Fillrate, 5N, 53.18, MPps, 11.512, Rmark
City scene, 5N, 61.66, rips, 15.300, Rmark
Video card bus transfer, 5N, 133.52, MBps, 4.251, Rmark
Direct3D bus transfer, 5N, 35.74, MBps, 3.055, Rmark
---------------------------------------------------------------------
Visual appearance, 100.00, percent
---------------------------------------------------------------------
Overall 3D, 4.109, Rmark
Overall 2D, 4.317, Rmark
Overall bus rate, 3.892, Rmark
---------------------------------------------------------------------
OVERALL SCORE, 4.139, Rmark
---------------------------------------------------------------------
1201859579

Voodoo2設定
レジストリ
　HKEY_LOCAL_MACHINE\SOFTWARE\3Dfx Interactive\Voodoo2\D3D
　HKEY_LOCAL_MACHINE\SOFTWARE\3Dfx Interactive\Voodoo2\Glide　の両方に
　　(文字列) SSTV2_GRXCLK　(データ) "96"　　を追記
画面のプロパティ－Voodoo2タブ
　Direct3DとGlideの両方
　　VSYNCと同期を取らない(Don't sync buffer swaps to refreshrate ～)

Voodoo設定
＠Autoexec.bat
SET SST_FASTMEM=1
SET SST_FASTPCIRD=1
SET SST_PCIRD=1
SET FX_GLIDE_SWAPINTERVAL=0
SET SST_SWAP_EN_WAIT_ON_VSYNC=0
SET SST_VSYNC=0
SET SST_SCREENREFRESH=85
SET SST_RGAMMA=1.70
SET SST_GGAMMA=1.70
SET SST_BGAMMA=1.70
SET SST_GRXCLK=56

＠Win.ini
[3Dfx]
SST_GRXCLK=56
SST_VIDEO_FILTER_THRESHOLD=65535
SST_FASTMEM=1
SST_FASTPCIRD=1
SST_PCIRD=1
FX_GLIDE_SHAMELESS_PLUG=1
FX_GLIDE_SWAPINTERVAL=0
SST_SWAP_EN_WAIT_ON_VSYNC=0
STT_VSYNC=0
